Bộ lập trình PLC Kinco K508-40DX (24*DI, 4*DO, 12*Relay, 1*RS232, 2*RS485)

Chia sẻ:
Mã sản phẩm: K508-40DX
Thương hiệu: Kinco
Tình trạng: Còn hàng

DC21.6-28.8V power supply, DI24*DC24V, DO4*DC24V + 12*Relay, 3*series communicaiton ports (1*RS232, 2*RS485)

Liên hệ
Mô tả

Bộ lập trình PLC Kinco K508-40DX (24*DI, 4*DO, 12*Relay, 1*RS232, 2*RS485)

K5 Series, as upgraded products of K3 series, close to market, provide diverse functions and higher performance, is a kind of cost-effective micro integrated PLC (Programmable Logic Controller). Kinco-K5 CPU provides special I/O functions (high-speed counter, PTO/PWM output), CANopen master, multiple RS485 ports, integrated analog input and output channels an so on. Equiped with diverse extension modules, Kinco-K5 PLC is applicable to fully meet requirements of small devices and process control. Kinco-K5 combines with MT4000 HMI, CD/FD/JD servo driver and inverter to provider users with easy automation solutions.

Tính năng

  • High-speed Counter

Kinco-K5 CPU provides two high-speed counters with 12 different operation modes, supports single phase frequency up to 60KHz and dual-phase (A/B phase) frequency up to 20KNz. In different modes, each counter has its own inputs for clock, direction control, start and reset, and has a 32-bit current value and preset value.

  • High-speed pulse output

Kinco-K5 CPU has two built-in pulse generators with frequency up to 200KHz, which support PTO (Pulse Train Output) or PWM (Pulse-Width Modulation). Kinco Builder software provides absolute position, relative position, homing, jog and quick stop instructions and so on. Kinco-K5, combining with stepper or servo system, can realize position control conveniently.

  • CAN bus Cmmunication Funtion

CPU module can provide CANopen master and free protocol function by connecting with CAN bus module K541. CANOpen master function complies with Standard DS301. It supports baud rate up to 1Mbps, 72 CANopen slave stations, up to 256 TPDOs and 256 RPDOs. Connect K5 with CD/FD/JD/ED series servo via CANopen bus can realize multi-axis motion control easily with simple wiring and high reliability.

  • Serial communication port

Kinco-K5 CPU provides 1 RS232 port and at most 2 RS485 ports, provides Modbus RTU master/slave and free protocol. Via RS485 ports, Kinco-K5 can work as Modbus RTU slave to connect with HMI, configuration software or other master station devices, as well as work as Modbus RTU master to connect with PLC, inverter, instrument, actuator. Each RS485 port support at most 32 devices to be interconnected into a network.

  • Edge Interrupt Function

Kinco-K5 provides edge interrupt, communication port interrupt, time interrupt, high-speed counter interrupt and so on. Interrupt routine run in real time, not affected by PLC cycle. DI points I0.0-I0.3 on CPU body support edge interrupt function. Kinco-K5 can capture rising/falling edge of DI signal quickly. Time base of the two ways time interrupts is 0.1mS, KincoK5 can meet applications of precise timing.

  • Soft-PID Function

Kinco-K5 provides soft-PID control function by function block (default). User can call at most 4 PID function blocks in program. The PID function block can take AI signal value as the PV value for PID, meanwhile, send PID output value directly to AO module for output.

  • Various module types

Kinco-K5 series PLCs comprise of CPU modules and expansion modules. Kinco-K5 provides about 20 kinds of models to meet various applications. CPU modules integrate with a certain number of I/O points on body. If I/O points are not enough for application, user could connect up to 10 expansion modules with up to 200 points to meet most automation applications

  • Integrated DC24V Sensor Supply

CPU modules provides DC24V power supply (Terminal name: VO+, VO-), with maximum current 300mA or 500mA. It can supply DC24V for the connected text dispaly panel, HMI, as well as DI points.

Thông số kỹ thuật

Name Order no. Specification
DC 24V AC 220V DI DO AI AO High-speed counter High-speed output Communications port Extension module Size (mm)
(L*W*H)
CPU504EX K504EX-14DT K504EX-14AT 8 6*transistor none Single phase
2*Max 60KHz
AB phase
2*Max 20KHz
2*Max 200KHz 1*RS232 Max 115.2kbps
1*RS485 Max 38.4kbps
Up to 4 97*114*70
K504EX-14DR K504EX-14AR 6*Relay
CPU506 K506-24DT K506-24AT 14 10*transistor 1*RS232 Max 115.2kbps
2*RS485 Max 38.4kbps
Up to 10 125*114*70
K506-24DR K506-24AR 10*Relay
CPU506EA K506EA-30DT K506EA-30AT 10*transistor 4 2 200*114*70
CPU508 K508-40DT K508-40AT 24 16*transistor none
K508-40DR K508-40AR 16*Relay
K508-40DX K508-40AX 4*transistor +
 12*Relay

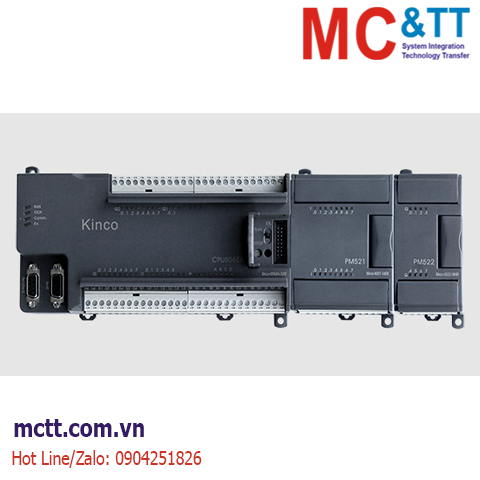

K5 Series Extensionmodule
Name Order no. Specification module width
(mm)
DI DO AI AO
PM521 K521-08DX 8 none none 50
K521-16DX 16 75
PM522 K522-08XR none 8*Relay 50
K522-16XR 16*Relay 75
K522-08DT 8*Transistor 50
K522-16DT 16*Transistor 75
PM523 K523-16DR 8 8*Relay
K523-08DR 4 4*Relay 50
K523-16DT 8 8*Transistor 75
K523-08DT 4 4*Transistor 50
PM531 K531-04IV none 4 none
K531-04RD 4 channels RTD Input,Pt100, Pt1000, Cu50, Resistance
K531-04TC 4 channels thermocouple Input,
cold junction internal compensation or external compensation is optional,
J type, K type, E type, S type
PM532 K532-02IV none none 2
PM533 K533-04IV 2 2
SM541 K541 CAN Extension communication module,
support CANopen master and CAN free communication protocal
PS580 K580 Power module Power supply of PS580::AC85~265V;
Output Current Rating:5V 1A/24V 250mA
75

Thông tin đặt hàng

  • K508-40DX

DC21.6-28.8V power supply, DI24*DC24V, DO4*DC24V + 12*Relay, 3*series communicaiton ports (1*RS232, 2*RS485)

Tài liệu

Catalog

Kinco K5 PLC User Manual
